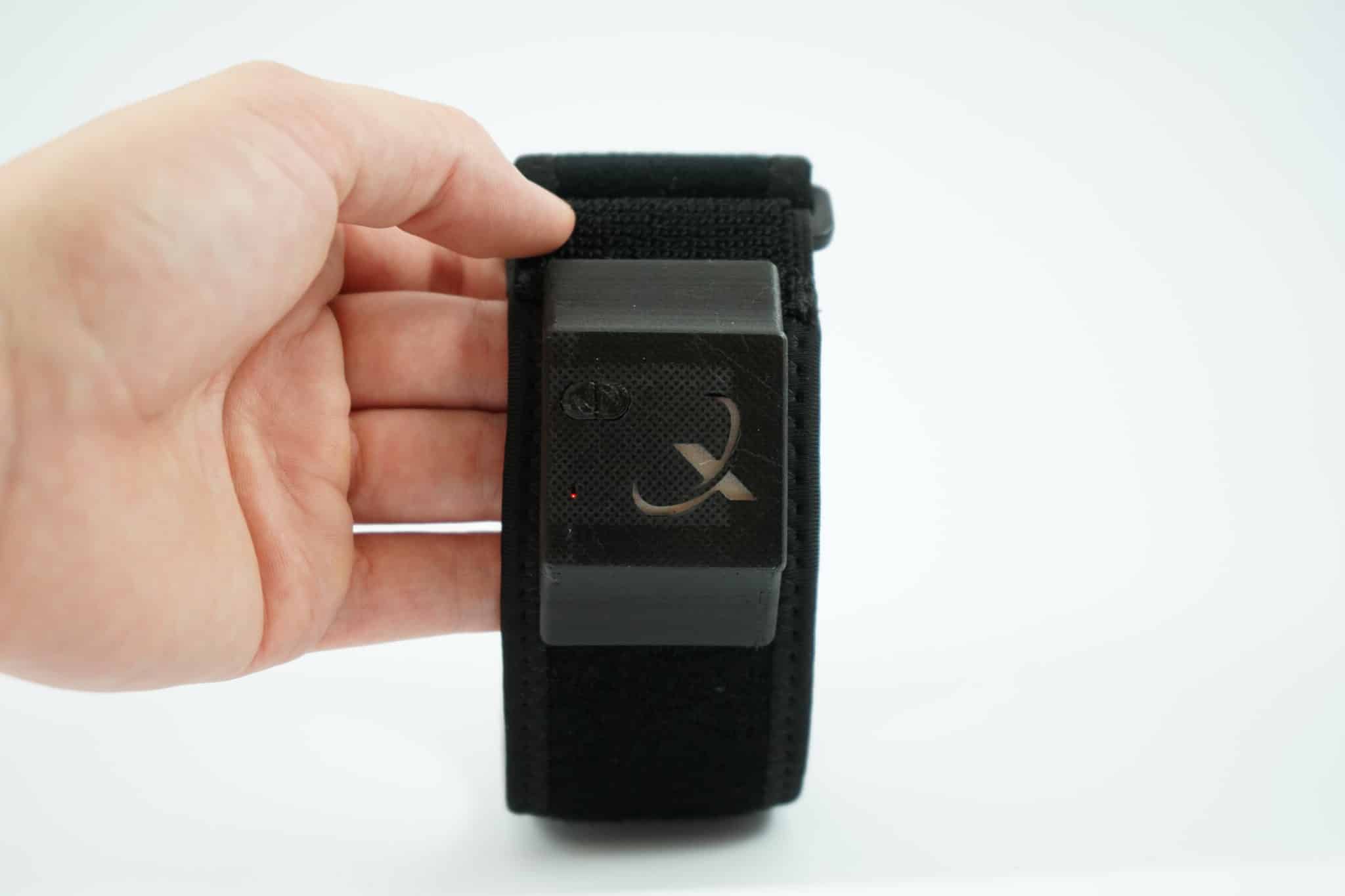

Guide to BioX AAL-Band 2.0
Using the new Wearable Technology, BioX AAL-Band you are able to control your device with a wave, using new patented gesture sensing technology.

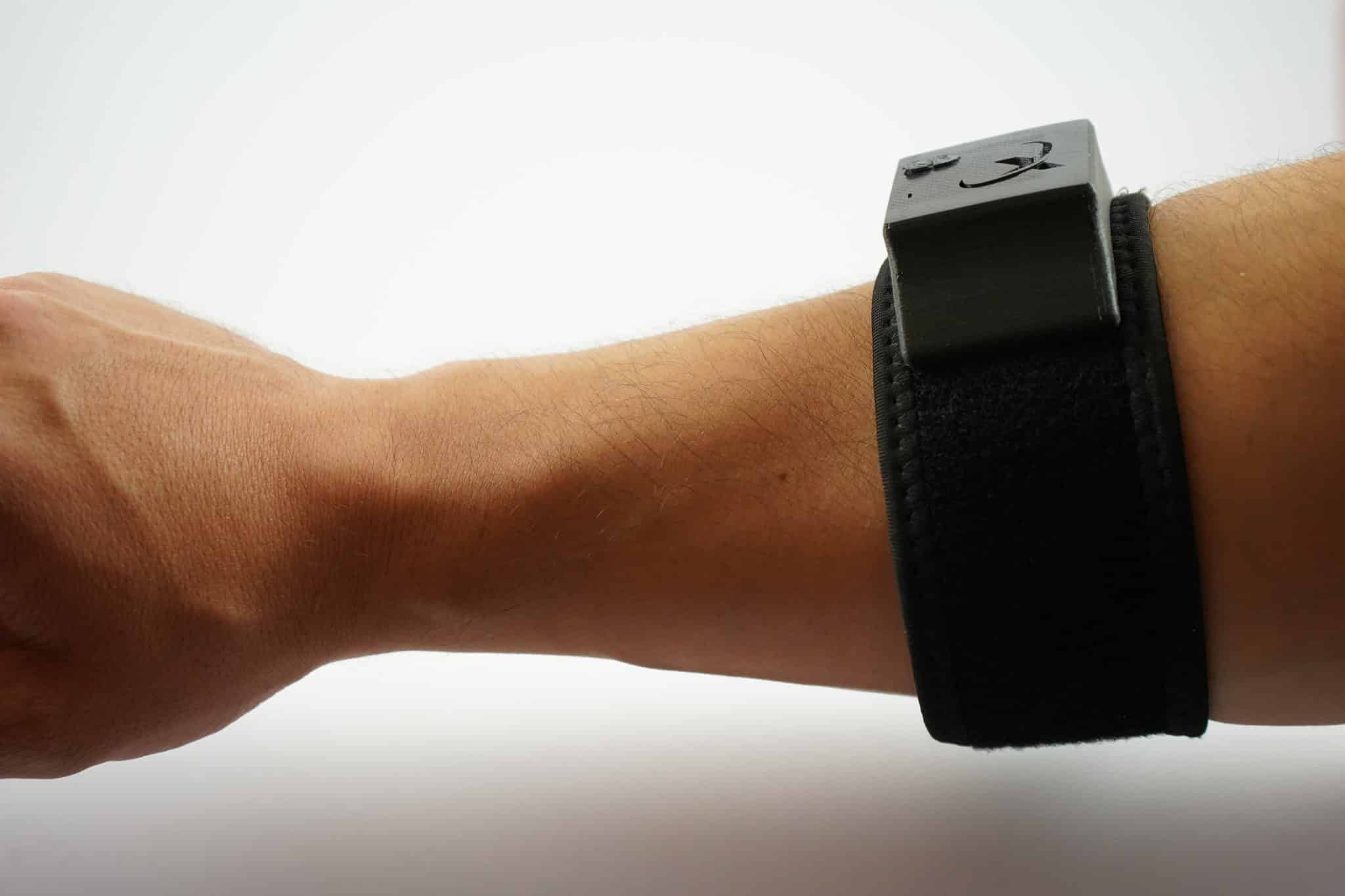

1. Wear the AAL-band on the forearm near the elbow joint.
2. Press the ‘ON’ button, to turn on or restart the AAL-Band.
3. Green and red LED will blink twice with two seconds gap. Afterwards the LED will be constantly red.
Green LED will blink with a 2-second gap during data transmission.
When the AAL-band is taken off shut down is initiated automatically after 20 seconds.
Shut down can also be initiated by pressing the ‘OFF’ button.
During shut down the red LED will blink five times with a one-second gap.
AAL-Band is capable of functioning reliably in industrial environments. By using FMG technology and IMU sensors, the BioX AAL-band achieves an accuracy of over 90%.
Ultra-Low Power Consumption
The band achieves ultra-low power consumption with state-of-the-art features, such as various power modes and dynamic power scaling.

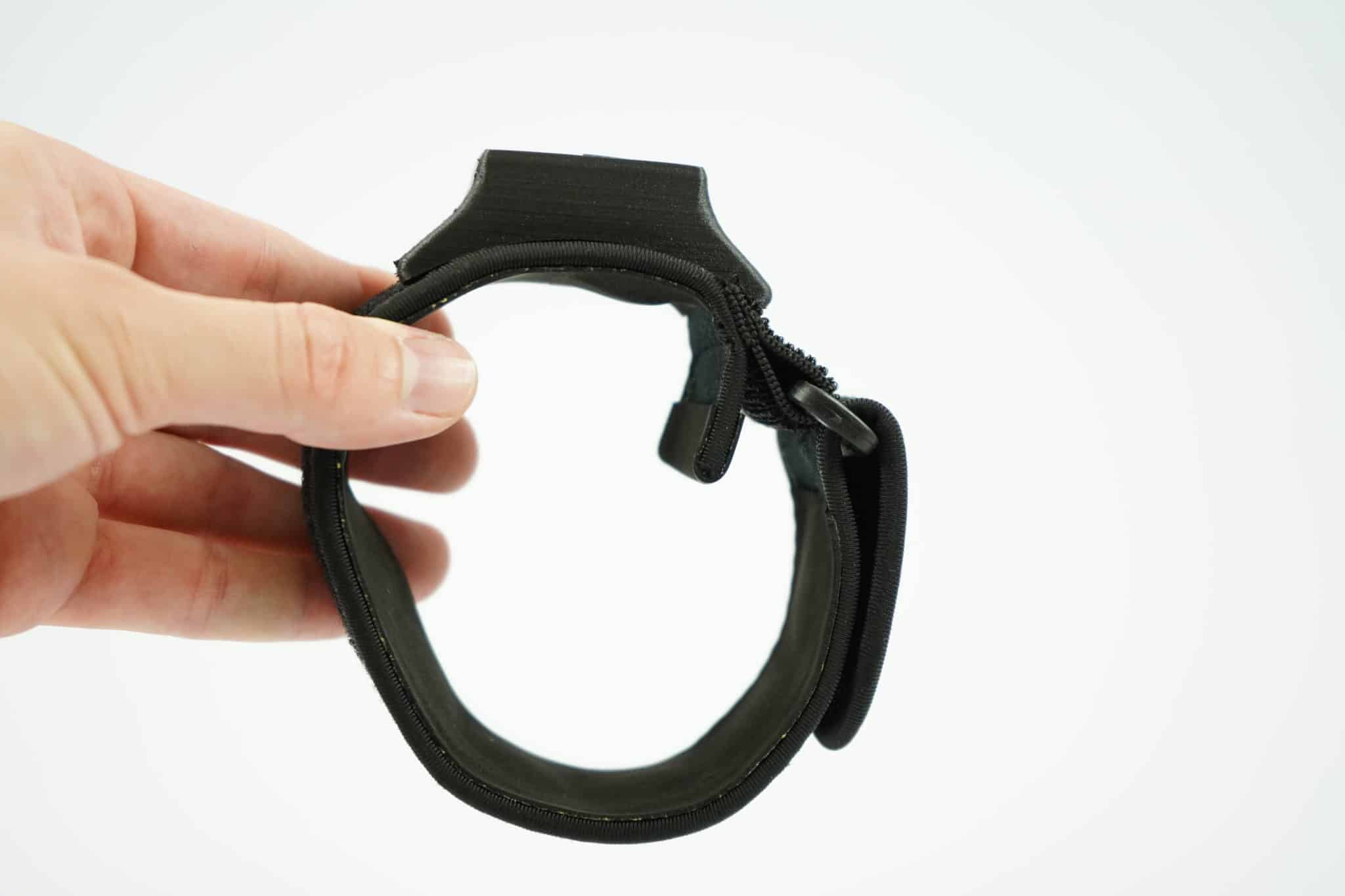

The band is constructed using a soft material, which is comfortable to wear, also for a long time.
The band consists of an array of eight FSR sensors that measures muscle contraction intensity.
The system also includes a highly sensitive 9-degrees-of-freedom IMU to measure angular velocity, linear acceleration, and magnetic fields.
Derivatives such as gravity vector, euler angles, and orientation of limbs can be calculated and used for movement prediction and analysis.
Onboard low-noise amplifier and Bluetooth chip ensure reliable calibration and fast streaming of data.
Weight and Dimensions
36cm x 5.5cm (L x W)
NOTICE! The band is to be used for the forearm with a circumference between 22cm and 25cm.
Micro-USB and Bluetooth
How to connect to Bluetooth
An array of eight FSR sensors to measure the muscle contraction intensity. Highly sensitive IMU to measure angular velocity, linear acceleration, and orientation of the limb. Tri-axis gravity forces can also be measured.
Rechargeable lithium battery.
Approximately four hours of use in a full single charge.
Input voltage – 5V.
Xtensa® single-/dual-core 32-bit LX6 microprocessor.
Classic Bluetooth SPP
Only compatible with Windows
Included in the box:
1 USB 2.0 A USB 2.0 Micro B 0,5 m
For further information:
Please read the userguide or the FAQ
